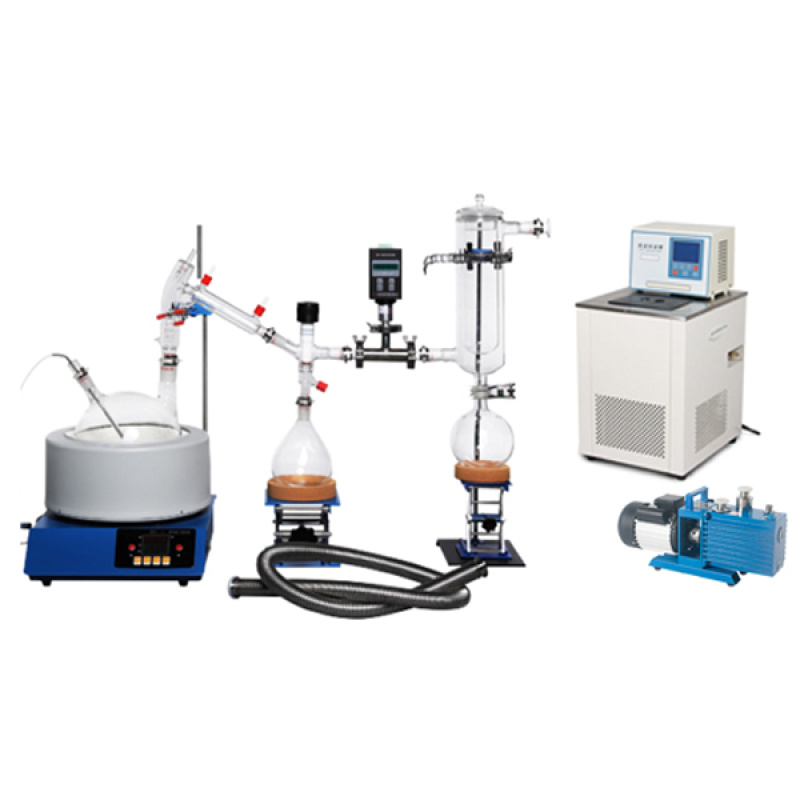

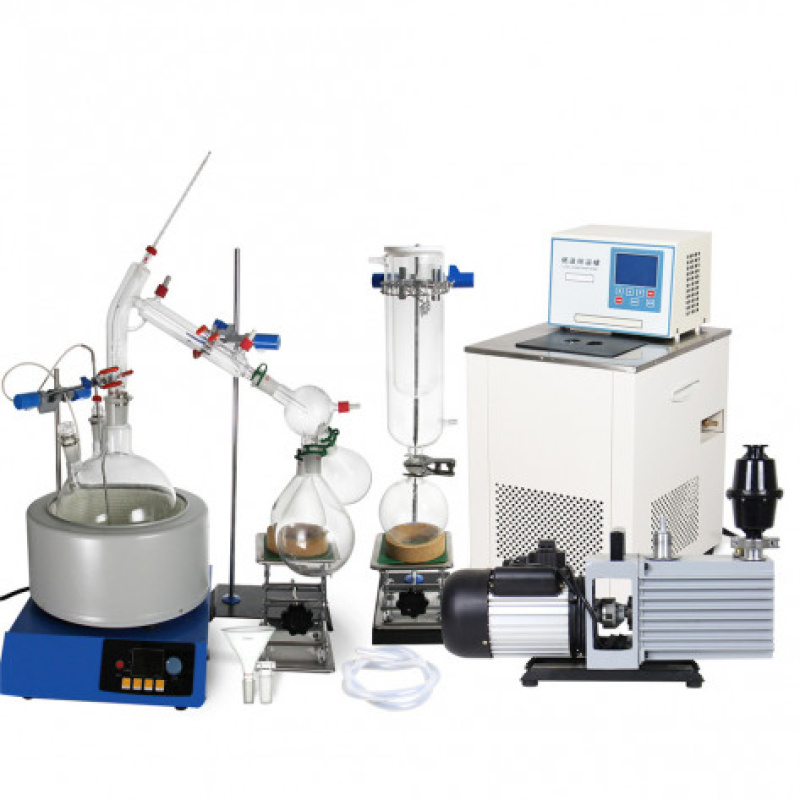

Short Path Distillation Kit 20L

Short Path  Distillation Kit 20L

Lead Time: 4-6 Weeks

Short path distillation is widely used in Pharmaceutical industry,

• laboratory fractional distillation,

It is mainly used for:

• enrichment
• crystallisation
• drying
• separation
• solvent recycling
• bio-pharmaceutical industry.

Under vacuum conditions, it is heated at a constant speed to form a large-area thin film on the cylinder wall to increase the evaporation efficiency.

Features

1. PTFE 14/20 and 24/40 thermo inlet adapters with Viton gaskets

2. Heavy wall glassware for durability

3. Downward material drain port

4. Vacuum jacketed vapor channel

5. Distillation head with multiple sets of vigreux

6. Recirculating fluid and vacuum connectors: GL-16 adapter and 3/8″ hose barb

7. High quality and heavy duty Borosilicate 3.3 glass for durability

8. Vacuum-jacketed distillation adapter, with 6 vigreux stages.

9. 5L heating mantle with magnetic stirring function, available in 110V or 220V

10. Carefully designed 3-way cow adapter accommodates up to 3 pcs of1000mL pear-shaped flask.

11. GCT-01 cold trap protects the vacuum pump from contamination and damage of vapors.

12. Flexible choice of vacuum pumps and heater/chillers.
