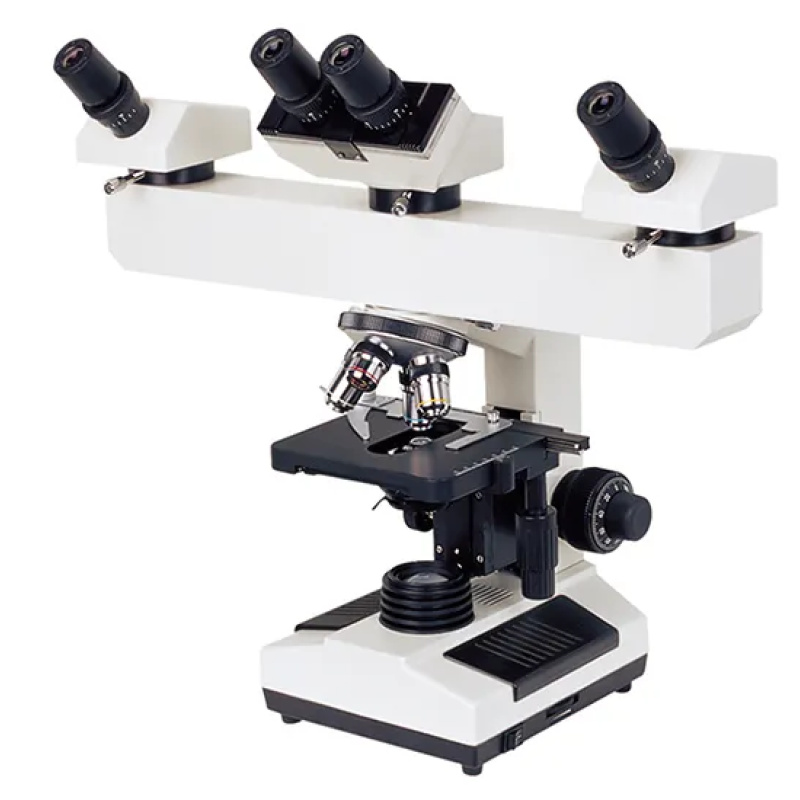

Multi-Viewing Multi-Head Microscope: BS-2030MH4B
- Microscope With Multi-Viewing Multi-Head
Lead Time: 3-4 Weeks
Introduction

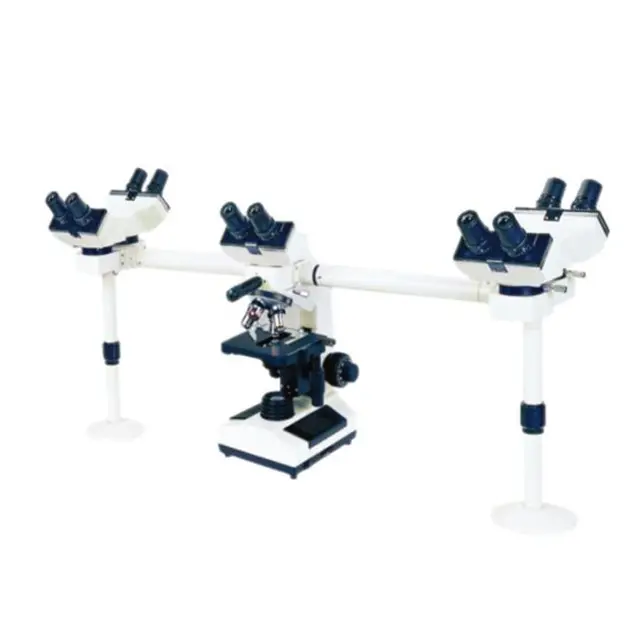

BS-2030MH Series Multi-Head Microscopes are equipped with multi-head for more persons observing at the same time.
BS-2030MH Series Multi-Head Microscopes are equipped with multi-head for more persons observing at the same time.
The optical system is high quality and reliable.
Features
1. Sharp image display with excellent optical system.
2. Small space occupancy with integral stand design, low environment requirement with anti-mould technology.
3. Users friendly and comfortable operation with ergonomic design.
1. Sharp image display with excellent optical system.
2. Small space occupancy with integral stand design, low environment requirement with anti-mould technology.
3. Users friendly and comfortable operation with ergonomic design.
Application
– BS-2030MH Series Multi-Head Microscopes are mainly used in medical teaching and biological teaching.
- They also can be used for biological analysis for more experts at the same time.
- They can be widely used in medical and sanitary establishments,laboratories, institutes, colleges and universities.
Specification
Multi-Viewing Multi-Head Microscope: BS-2030MH4B
|
Item
|
Specification
|
BS-2030
MH4A |
BS-2030
MH4B |
BS-2030
MH10 |
|
Viewing Head
|
Sliding Binocular Head, inclined at 45°, Interpupillary Distance: 55-75mm, Anti-mould
|
2PCS
|
1PC
|
5PCS
|
|
Monocular Head, inclined at 45°, Anti-mould
|
2PCS
|
|||
|
Sliding Trinocular Head, inclined at 45°, Interpupillary Distance: 55-75mm, Anti-mould
|
○
|
○
|
○
|
|
|
Eyepiece
|
Wide Field Eyepiece WF10×/18mm
|
4PCS
|
4PCS
|
10PCS
|
|
Wide Field Eyepiece WF16×/11mm
|
||||
|
Nosepiece
|
Quadruple Nosepiece
|
●
|
●
|
●
|
|
Objective
|
Achromatic Objective 4×, 10×, 40×, 100×
|
●
|
●
|
●
|
|
Achromatic Objective 20×, 60×
|
○
|
○
|
○
|
|
|
Semi- Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×
|
○
|
○
|
○
|
|
|
Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×
|
○
|
○
|
○
|
|
|
Condenser
|
Abbe Condenser NA1.25
|
●
|
●
|
●
|
|
Focusing
|
Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation,
Moving Range 28mm |
●
|
●
|
●
|
|
Stage
|
Double Layers Mechanical Stage 140×140mm/ 75×50mm
|
●
|
●
|
●
|
|
lllumination
|
1W S-LED illumination, Brightness adjustable
|
●
|
●
|
●
|
|
Halogen Lamp 6V/ 20W
|
○
|
○
|
||
|
Halogen Lamp 24V/ 100W
|
○
|
|||
|
Pointer
|
Green LED Pointer, Brightness Adjustable
|
●
|
