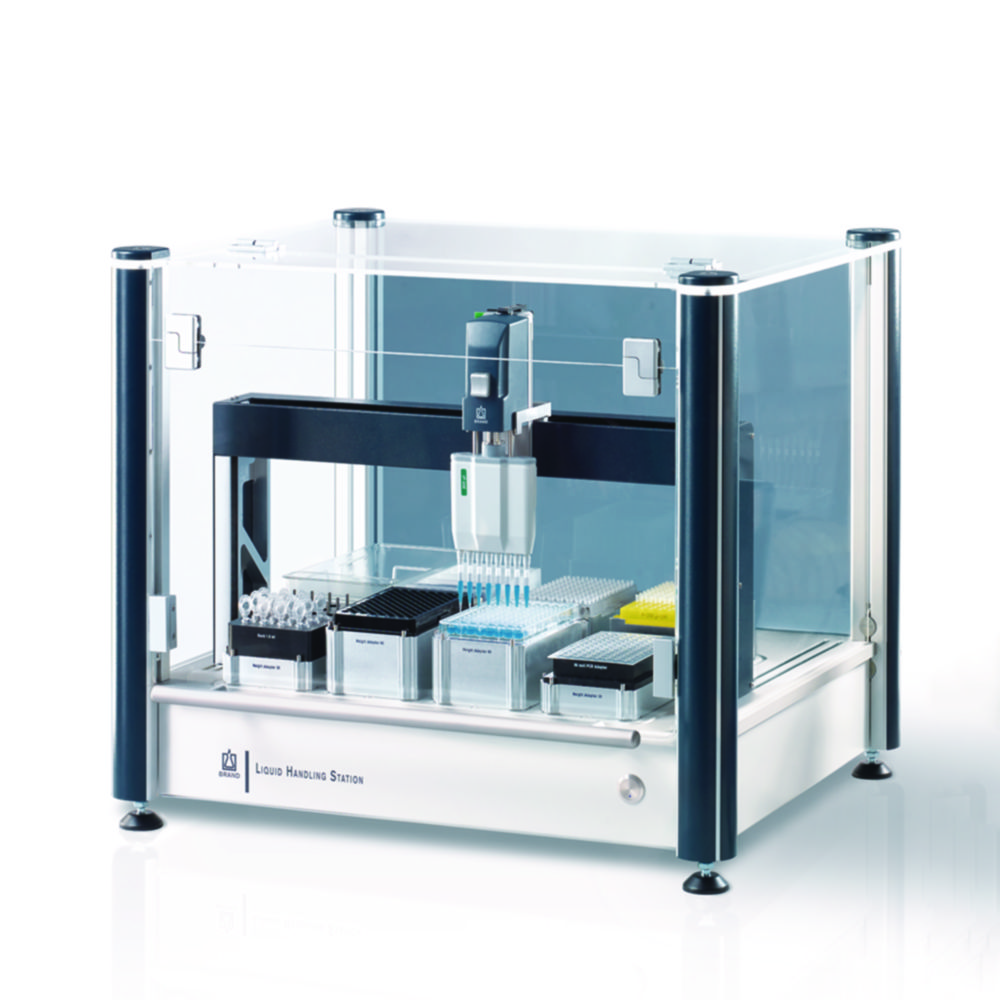

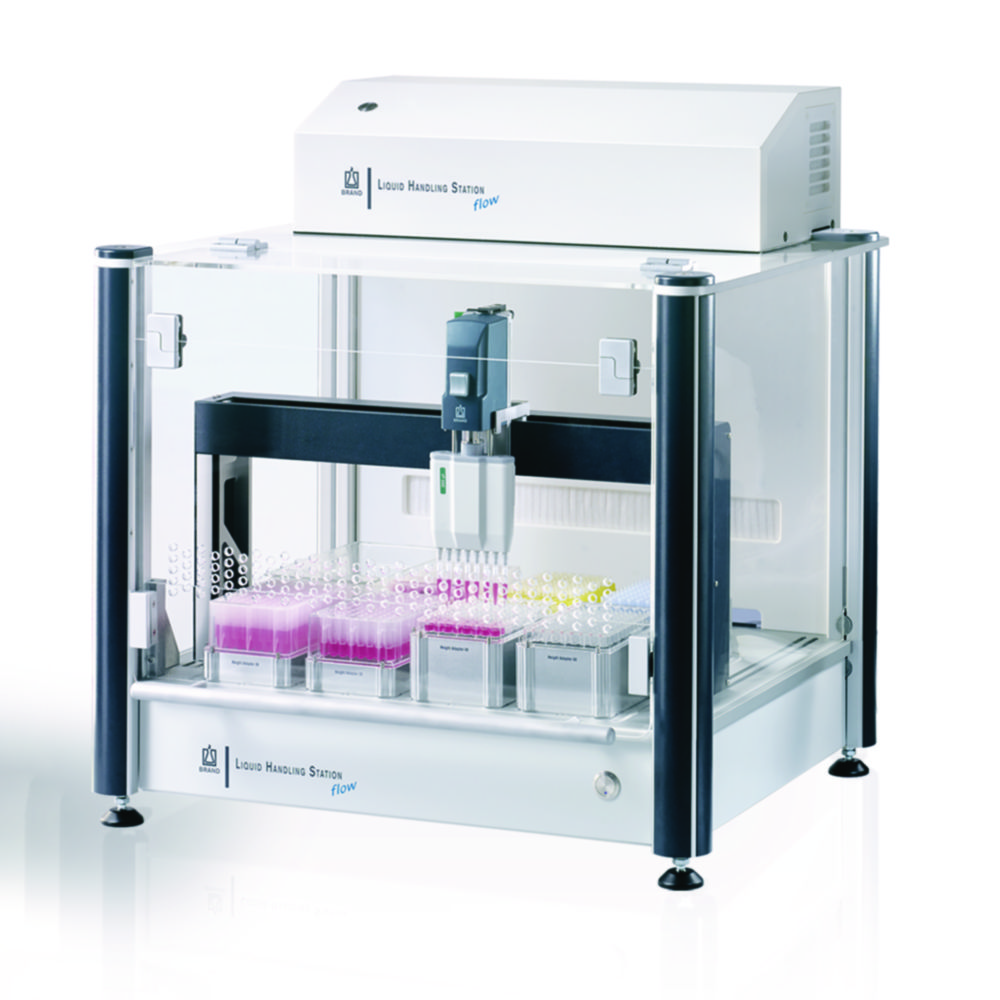

Liquid Handling Station flow Pipetting robot with FlowBox

For applications where samples must be protected from particles and microorganisms. The FlowBox directs filtered air in a horizontal, laminar air stream through the work area, which prevents contamination. With the door closed, the air volume inside the cabinet is replaced 260 times per hour, and exits through openings in the front door.

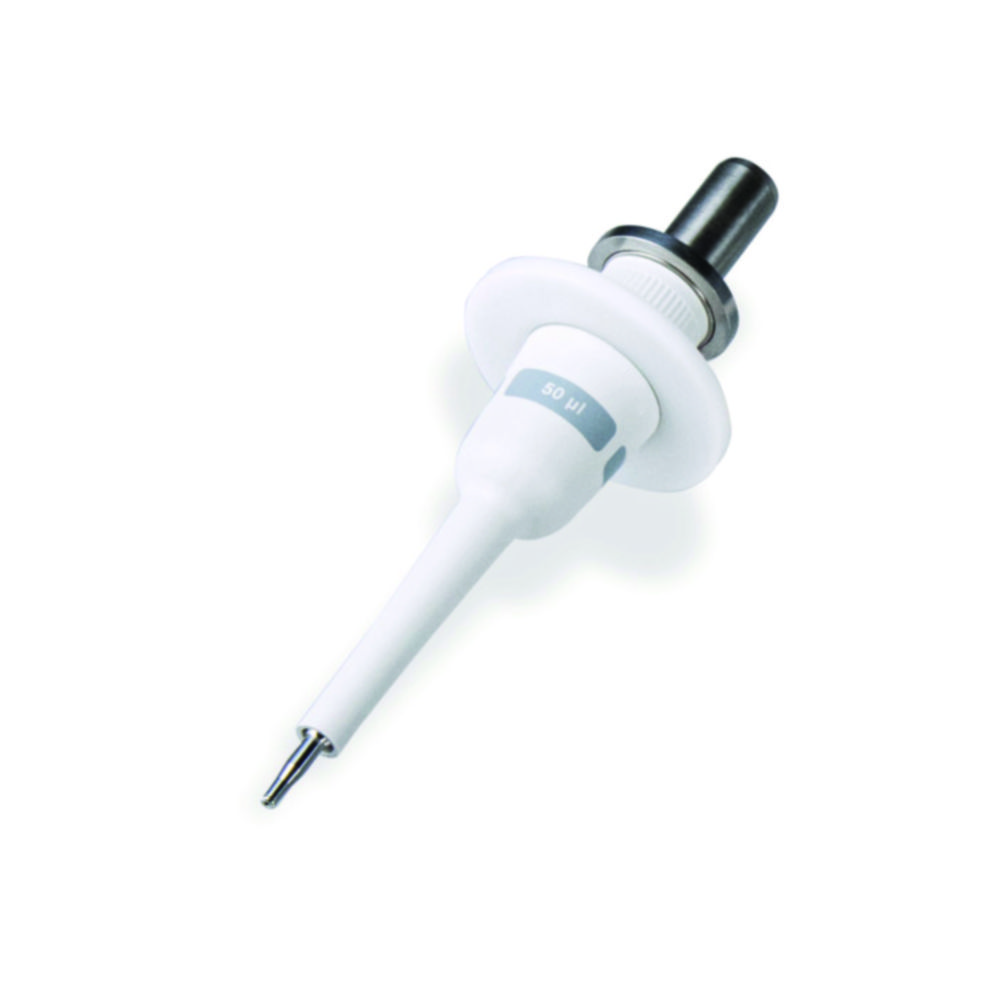

Seven ANSI / SLAS formatted workplaces can be freely assigned, including PCR tubes and strips, microcentrifuge tubes, reservoirs, and 96- or 384-well plates. Liquid ends are available in various versions for contact-free fluid delivery. The Liquid Handling Station’s compact design and space-saving front door make it an ideal fit where benchtop space is limited.

• Method creation with intuitive software
• 2 x USB interfaces
• Dimensions (W x D x H): 595 x 515 x 662 mm
• Weight: approx. 35 kg
• Operating temperature: 15 to 35 °C
• Housing protection class IP20

Scope of supply: Liquid handling station, motor control unit, operating software, user manual, power cable, USB cable, documentation, on-site training, FlowBox filtration unit
